Specifications
| Connection Vacuum Inlet Flange | DN 100 |
| Connection vacuum outlet flange | DN 100 |
| Cooling Method | Air Cooling (forced - fan) |
| Power Total Rated | 15000.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.175 |
| Pressure Ultimate | 1.00 |

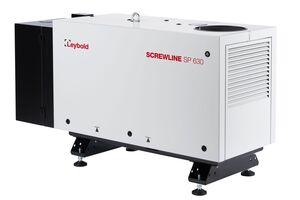

SCREWLINE SP 630 50Hz man GB Purge gas
Part Number: 117007
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 117007 | |
| 117039 | |
| 117105 | |
| 117113 |
General Product Information
| Connection vacuum outlet flange | DN 100 |
| Connection Vacuum Inlet Flange | DN 100 |
| Cooling Method | Air Cooling (forced - fan) |
| Dimension Height | 0.880 |
| Dimension Length | 1.63 |
| Dimension Width | 0.660 |
| IP Rating | IP55 |
| Supply Frequency | 50 Hz |
| Power Supply Phase | 3-Ph |
| Weight | 530.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 100 | DN 100 |
Performance Data
| Capacity Water Vapour | 3.889 × 10⁻³ |
| Power Total Rated | 15000.00 |
| Power Total Rated @50Hz | 15000.00 |
| Power Total Rated @60Hz | 15000.00 |
| Pressure Ultimate | 1.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.175 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 10.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
- 17200145_002_Instructions.pdf - English - Instructions
- GA02411_002_Instructions.pdf - English - Instructions
- 300967807_002_Instructions.pdf - English - Instructions
- 3611 0109 02_SCREWLINE_Broschure_EN_web.pdf - English - Sales Material
- 3611010902_SCREWLINE_EN_web.pdf - English - Sales Material
- GA02411_003_Instructions.pdf - French - Instructions
- 300967807_003_Instructions.pdf - French - Instructions
- 17200145_001_Instructions.pdf - German - Instructions
- GA02411_001_Instructions.pdf - German - Instructions
- 300967807_001_Instructions.pdf - German - Instructions
- 3611010914_SCREWLINE_KO_web.pdf - Korean - Sales Material
- 3611010907_SCREWLINE_RU_web.pdf - Russian - Sales Material
- 300967807_011_Instructions.pdf - Simplified Chinese - Instructions
- 3611010911_SCREWLINE_ZH-CN_web.pdf - Simplified Chinese - Sales Material
- 3611010906_SCREWLINE_ES_web.pdf - Spanish (European) - Sales Material
- 3611010915_SCREWLINE_ZH-TW_web.pdf - Traditional Chinese - Sales Material
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| ADAPTER MULTIFLANGE / ISO-K FOR SP630 | 119020 | EUR 1,127.00 | |
| Purge-Ventillation -Kit SP630 | 119060V | EUR 949.00 | |
| Filter F400-630 paper 100 ISO-K | 95172 | EUR 3,138.00 | |
| Pressure Switch for Purge Gas | 119014V | EUR 635.00 | |
| Gasballast Retrofit-Kit 24V | 119054V | EUR 524.00 | |
| Secuvac - EM Al DN 100 ISO-K 24V DC | 215225 | EUR 3,738.00 | |
| Secuvac - EM Al DN 100 ISO-K 230V AC | 215227 | EUR 3,738.00 |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| LEYBONOL LVO 210, 1L (ATEX APPROVED) | L21001 | EUR 51.30 | |
| LEYBONOL LVO 210, 5L (ATEX APPROVED) | L21005 | EUR 186.00 |
