Specifications
| Connection Vacuum Inlet Flange | DN 100 ISO-K DN 160 ISO-K |
| Connection vacuum outlet flange | DN 80 ISO-K |
| Cooling Method | Air Cooling (forced - fan) |
| Supply Voltage | 3Ph 400V 50Hz |
| Pressure Ultimate | 0.100 |

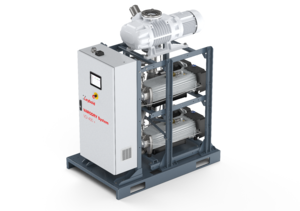

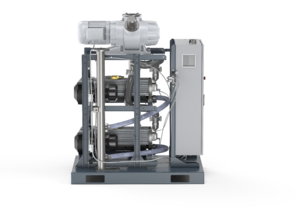

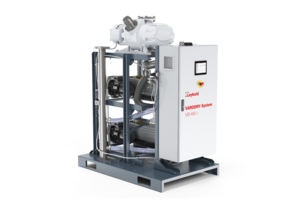

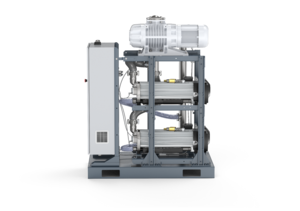

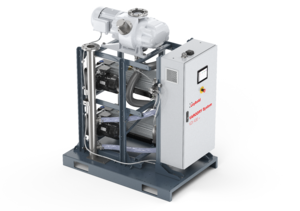

VARODRY VD 400i+ - booster ready 50Hz 400V
Part Number: 111400VDI01
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 111400VDI01 | |
| 111400VDI02 |
General Product Information
| Connection vacuum outlet flange | DN 80 ISO-K |
| Connection Vacuum Inlet Flange |
DN 100 ISO-K
DN 160 ISO-K |
| Cooling Method | Air Cooling (forced - fan) |
| Dimension Height | 1.77 |
| Dimension Length | 1.41 |
| Dimension Width | 0.925 |
| Supply Frequency | 50 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage | 3Ph 400V 50Hz |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 100 ISO-K | DN 80 ISO-K |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 0.000 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification |
Medium Vacuum Pump
Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
Performance Data
| Capacity Water Vapour | 3.861 × 10⁻³ |
| Pressure Ultimate | 0.100 |
- 300901250_035 - Instructions.pdf - Brazilian Portuguese - Instructions
- 300923565_002_Instructions.pdf - English - Instructions
- 300901250_002_Instructions.pdf - English - Instructions
- 3611220202_VARODRY Systems_web.pdf - English - Sales Material
- 300901250_003 - Instructions.pdf - French - Instructions
- 300923565_001_Instructions.pdf - German - Instructions
- 300901250_001 - Instructions.pdf - German - Instructions
- 3611220201_VARODRY Systems_DE_web.pdf - German - Sales Material
- 3611220204_VARODRY Systems_IT_web.pdf - Italian - Sales Material
- 3611220204_VARODRY Systems_IT_web.pdf - Italian - Sales Material
- 300901250_012 - Instructions.pdf - Japanese - Instructions
- 3611220221_VARODRY Systems_JA_web.pdf - Japanese - Sales Material
- 300901250_014 - Instructions.pdf - Korean - Instructions
- 3611220214_VARODRY Systems_KO_web.pdf - Korean - Sales Material
- 3611220235_VARODRY Systems_PT-BR_web.pdf - Portuguese (European) - Sales Material
- 300901250_011 - Instructions.pdf - Simplified Chinese - Instructions
- 300901250_006 - Instructions.pdf - Spanish (European) - Instructions
- 3611220211_VARODRY Systems_ZH-TW_web.pdf - Traditional Chinese - Sales Material
- 3611220211_VARODRY Systems_ZH-TW_web.pdf - Traditional Chinese - Sales Material
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Centring Ring - Al FKM O-Ring DN 40 ISO-KF | 18208 | EUR 7.20 | |
| Clamping Ring - (ADC 12) AL DN 32/40 ISO-KF | 18343 | EUR 7.40 | |
| Inlet Adapter G 1 1/4 | 111005A21 | EUR 69.70 | |
| Inlet Adapter DN40 ISO-KF | 111005A20 | EUR 81.90 | |
| Inlet Adapter DN63 ISO-K | 111005A24 | EUR 125.00 | |
| EXHAUST ADAPTER DN40 ISO-KF | 111005A30 | EUR 81.90 | |
| INLET CHECK VALVE G2 | 111005A15 | EUR 503.00 | |
| Inlet Adapter NPT 1 1/4-11,5 | 111005A22 | EUR 148.00 | |
| Inlet Adapter NPT 2-11,5 | 111005A23 | EUR 162.00 | |
| EXHAUST ADAPTER NPT 1½-11,5 | 111005A31 | EUR 148.00 | |
| Casters VARODRY 65-100-160-200 | 111005A50 | EUR 349.00 |
