Specifications
| Connection Vacuum Inlet Flange | 2" BSPT (Rc) Female |
| Connection vacuum outlet flange | 1 1/2" BSPP (or G 1 1/2") Female |
| Cooling Method | Air Cooling (forced - fan) |
| Power Total Rated | 4000.00 |

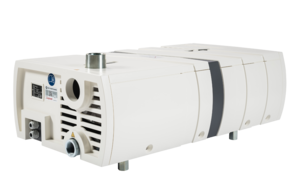

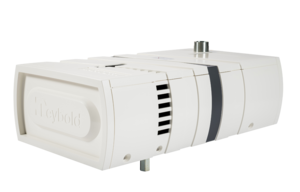

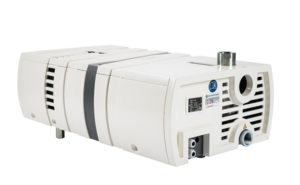

VARODRY VD 200 - 400V 50Hz Purge
Part Number: 111200V15
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 10110200V01 | |
| 111200V10 | |
| 111200V12 | |
| 111200V15 | |
| 111200V35 |
General Product Information
| Connection vacuum outlet flange | 1 1/2" BSPP (or G 1 1/2") Female |
| Connection Vacuum Inlet Flange | 2" BSPT (Rc) Female |
| Cooling Method | Air Cooling (forced - fan) |
| Dimension Height | 0.428 |
| Dimension Length | 1.06 |
| Dimension Width | 0.599 |
| IP Rating | IP55 |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Weight | 140.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | 2" BSPT (Rc) Female | 1 1/2" BSPP (or G 1 1/2") Female |
Environmental Conditions
| Temperature Ambient Storage Max | 60.00 |
| Temperature Ambient Operation Min | 0.000 |
| Temperature Ambient Storage Min | -20.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
Performance Data
| Power Total Rated | 4000.00 |
- 300923565_002_Instructions.pdf - English - Instructions
- 300934449_002_Instructions.pdf - English - Instructions
- 300766038_002_Instructions.pdf - English - Instructions
- 300890265_002_Instructions.pdf - English - Instructions
- 300961830_002_Instructions.pdf - English - Instructions
- 3611001102_FlushingKit_Salessheet.pdf - English - Sales Material
- 3611002102_PurgeUpgradeKit_Salessheet.pdf - English - Sales Material
- 3611006002_VARODRY_OEM_Flyer_web.pdf - English - Sales Material
- 3611001102_FlushingKit_Salessheet_210325.pdf - English - Sales Material
- 3611002102_PurgeUpgradeKit_Salessheet_210325.pdf - English - Sales Material
- 3611008102_VARODRY_web.pdf - English - Sales Material
- 3611240102_VARODRY_DOT_Brake_Fluid_Flyer_web.pdf - English - Sales Material
- 3611006001_VARODRY_OEM_Flyer_DE_web.pdf - English - Sales Material
- 3611006002_VARODRY_OEM_Flyer_EN_web.pdf - English - Sales Material
- 3611005002_VARODRY_HDO2_Flyer_web.pdf - English - Sales Material
- 3611221102_VARODRY_OEM_HD_O2_Flyer_EN_web.pdf - English - Sales Material
- 3611221101_VARODRY_OEM_HD_O2_Flyer_DE_web.pdf - English - Sales Material
- 300934449_003_Instructions.pdf - French - Instructions
- 300766038_003_Instructions.pdf - French - Instructions
- 3611008103_VARODRY_FR_web.pdf - French - Sales Material
- 300923565_001_Instructions.pdf - German - Instructions
- 300934449_001_Instructions.pdf - German - Instructions
- 300766038_001_Instructions.pdf - German - Instructions
- 300890265_001_Instructions.pdf - German - Instructions
- 3611008101_VARODRY_DE_web.pdf - German - Sales Material
- 3611005001_VARODRY_HDO2_Flyer_DE_web.pdf - German - Sales Material
- 300766038_004_Instructions.pdf - Italian - Instructions
- 300934449_012_Instructions.pdf - Japanese - Instructions
- 300766038_012_Instructions.pdf - Japanese - Instructions
- 300890265_012_Instructions.pdf - Japanese - Instructions
- 3611006014_VARODRY_OEM_Flyer_KO_web.pdf - Korean - Sales Material
- 3611005014_VARODRY_HDO2_Flyer_KO_web.pdf - Korean - Sales Material
- 300934449_022_Instructions.pdf - Polish - Instructions
- 300766038_022_Instructions.pdf - Polish - Instructions
- 3611008107_VARODRY_RU_web.pdf - Russian - Sales Material
- 300934449_011_Instructions.pdf - Simplified Chinese - Instructions
- 300766038_011_Instructions.pdf - Simplified Chinese - Instructions
- 300766038_006_Instructions.pdf - Spanish (European) - Instructions
- 3611008106_VARODRY_ES_web.pdf - Spanish (European) - Sales Material
- 300934449_018_Instructions.pdf - Turkish - Instructions
- 300766038_018_Instructions.pdf - Turkish - Instructions
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| Centring Ring - Al FKM O-Ring DN 40 ISO-KF | 18208 | EUR 7.20 | |
| Clamping Ring - (ADC 12) AL DN 32/40 ISO-KF | 18343 | EUR 7.40 | |
| Inlet Adapter G 1 1/4 | 111005A21 | EUR 69.70 | |
| Inlet Adapter DN40 ISO-KF | 111005A20 | EUR 81.90 | |
| Inlet Adapter DN63 ISO-K | 111005A24 | EUR 125.00 | |
| EXHAUST ADAPTER DN40 ISO-KF | 111005A30 | EUR 81.90 | |
| INLET CHECK VALVE G2 | 111005A15 | EUR 503.00 | |
| Inlet Adapter NPT 1 1/4-11,5 | 111005A22 | EUR 148.00 | |
| Inlet Adapter NPT 2-11,5 | 111005A23 | EUR 162.00 | |
| EXHAUST ADAPTER NPT 1½-11,5 | 111005A31 | EUR 148.00 | |
| Casters VARODRY 65-100-160-200 | 111005A50 | EUR 349.00 |
