Specifications
| Connection Vacuum Inlet Flange | DN 100 ISO-K |
| Connection vacuum outlet flange | DN 100 ISO-K |
| Cooling Method | Air Cooling |
| Supply Voltage | 3Ph 200/230/400 50 Hz 3Ph 200-208/265/460 60 Hz |
| Power Total Rated | 4000.00 |

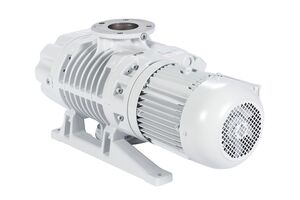

RUVAC WS 1001 LVO 400
Part Number: 11747
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 11742 | |
| 11747 |
General Product Information
| Connection vacuum outlet flange | DN 100 ISO-K |
| Connection Vacuum Inlet Flange | DN 100 ISO-K |
| Cooling Method | Air Cooling |
| Dimension Height | 0.396 |
| Dimension Length | 0.560 |
| Dimension Width | 0.376 |
| IP Rating | IP20 |
| Leak Rate | 1.000 × 10⁻⁵ |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage |
3Ph 200/230/400 50 Hz
3Ph 200-208/265/460 60 Hz |
| Weight | 228.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 100 ISO-K | DN 100 ISO-K |
Performance Data
| Power Total Rated | 4000.00 |
| Power Total Rated @50Hz | 4000.00 |
| Power Total Rated @60Hz | 4400.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Mechanical Booster Pump |
- 301191881_035_Instructions.pdf - Brazilian Portuguese - Instructions
- 301191881_002_Instructions.pdf - English - Instructions
- GA03108_002_Instructions.pdf - English - Instructions
- 3611018836_RUVAC_WA_WS_ZH-TW_web.pdf - English - Sales Material
- 3611018814_RUVAC_WA_WS_KO_web.pdf - English - Sales Material
- 3611018802_RUVAC_WA_WS_EN_web.pdf - English - Sales Material
- 301191881_003_Instructions.pdf - French - Instructions
- GA03108_003_Instructions.pdf - French - Instructions
- 301191881_001_Instructions.pdf - German - Instructions
- GA03108_001_Instructions.pdf - German - Instructions
- 3611018801_RUVAC_WA_WS_DE_web.pdf - German - Sales Material
- 301191881_004_Instructions.pdf - Italian - Instructions
- 3611018804_RUVAC_WA_WS_IT_web.pdf - Italian - Sales Material
- 301191881_012_Instructions.pdf - Japanese - Instructions
- 3611018821_RUVAC_WA_WS_JA_web.pdf - Japanese - Sales Material
- 301191881_014_Instructions.pdf - Korean - Instructions
- 3611018835_RUVAC_WA_WS_PT-BR_web.pdf - Portuguese (European) - Sales Material
- 301191881_011_Instructions.pdf - Simplified Chinese - Instructions
- 301191881_006_Instructions.pdf - Spanish (European) - Instructions
- 3611018806_RUVAC_WA_WS_ES_web.pdf - Spanish (European) - Sales Material
- 301191881_026_Instructions.pdf - Traditional Chinese - Instructions
