Specifications
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Cooling Method | Air Cooling (forced - fan) |
| lubricantProductDefault | LEYBONOL LVO 700 |
| Supply Voltage | 3Ph 180-264 / 342-457V 50Hz / 180-264 / 342-506V 60Hz |
| Power Total Rated | 900.00 |
| Pressure Ultimate | 0.800 |

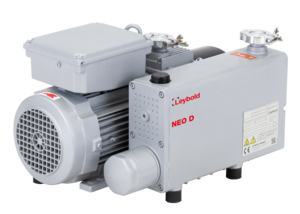

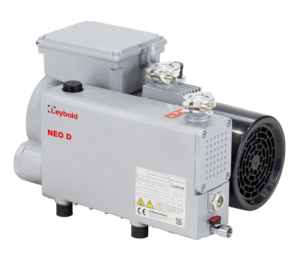

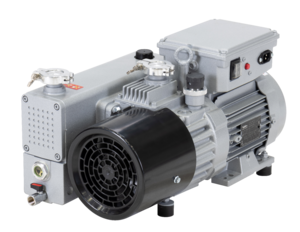

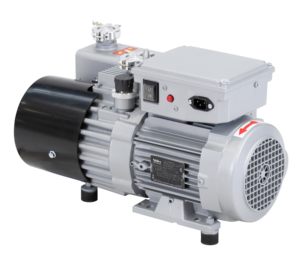

NEO D 25 - 3Ph WORLD LVO700
Variant
Explore the range of variants given below to compare the product
| Short Description | Part Number |
|---|---|
| 970200V | |
| 970202V |
Oil Rotary Vane Pumps Two-Stage
Leybold TRIVAC & NEO D oil sealed double stage vane pumps are well known and being used in all areas of vacuum engineering and are equally suited for both industrial production and research applications. The TRIVAC & NEO D pumps, used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots vacuum pumps or high vacuum pumps, have the ability of pumping down from the atmosphere.
NEO D
Leybold NEO D oil sealed rotary vane pumps excel in industrial and analytical application with their low noise levels, smooth and clean operation. When processes rely on continuous vacuum, reliable, high-performance vacuum technology is essential. NEO D, with less noise and fewer emissions contributes to a better work environment with higher levels of productivity in demanding applications
NEO D 25
NEO D 25 excels also in vapor pumping performance: thanks to its integrated exhaust demister, which is at pump temperature. Thus, there is no condensation in the pump and vapors cross the pump in gas phase. External oil demisters have the disadvantage of being at ambient temperature what favors condensation. Condensed vapors will return then into the pump which may deteriorate their performance and lubrication.
Features and Benefits
- Clean use. No external accessory required. Oil loss < 1 ppm at any inlet pressure
- Peace of mind use: Continuous operation from atmospheric pressure to ultimate pressure
- Peace of mind use: Lowest noise and vibration levels
- Low Cost of Ownership: Cool operating temperature, for longer oil lifetime
- Process control & reliability: Excellent vapor pumping performance thanks to its integrated warm exhaust demister avoiding condensation
General Product Information
| Connection vacuum outlet flange | DN 25 ISO-KF (NW25) |
| Connection Vacuum Inlet Flange | DN 25 ISO-KF (NW25) |
| Cooling Method | Air Cooling (forced - fan) |
| Dimension Height | 0.294 |
| Dimension Length | 0.516 |
| Dimension Width | 0.288 |
| IP Rating | IP55 |
| Leak Rate | 1.000 × 10⁻⁴ |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage | 3Ph 180-264 / 342-457V 50Hz / 180-264 / 342-506V 60Hz |
| Weight | 48.00 |
| Dimension Comments | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Connection Inlet / Outlet Flange | DN 25 ISO-KF (NW25) | DN 25 ISO-KF (NW25) |
Performance Data
| Power Total Rated | 900.00 |
| Power Total Rated @50Hz | 900.00 |
| Power Total Rated @60Hz | 1100.00 |
| Pressure Ultimate | 0.800 |
| Pressure Water Vapour Max | 1000.00 |
| Pumping Speed Air Nitrogen 50Hz | 6.667 × 10⁻³ |
| Pumping Speed Air Nitrogen 60Hz | 8.056 × 10⁻³ |
| Nominal Rotational Speed 50Hz | 25.00 |
| Nominal Rotational Speed 60Hz | 30.00 |
| Pressure Ultimate With Gas Ballast | 10.00 |
Environmental Conditions
| Temperature Ambient Operation Max | 40.00 |
| Temperature Ambient Operation Min | 12.00 |
Classification
| Dry or Wet Pump | Wet |
| Product Pressure Range |
Rough Vacuum: 1000 mbar - 1 mbar
Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Oil Rotary Vane Pump Two-Stage |
Operation Conditions - Limitations
| Oil Capacity Max | 1.500 × 10⁻³ |
Lubricants
| lubricantProductDefault | LEYBONOL LVO 700 |
- 300731504_002_Instructions.pdf - English - Instructions
- 3611011102_Neo_D_EN_web.pdf - English - Sales Material
- 3611011102_Neo_D_EN_web.pdf - English - Sales Material
- 300731504_003_Instructions.pdf - French - Instructions
- 3611011103_NEO_D_FR_web.pdf - French - Sales Material
- 300731504_001_Instructions.pdf - German - Instructions
- 3611011101_Neo_D_DE_web.pdf - German - Sales Material
- 3611011101_Neo_D_DE_web.pdf - German - Sales Material
- 3611011104_Neo_D_IT_web.pdf - Italian - Sales Material
- 3611011104_Neo_D_IT_web.pdf - Italian - Sales Material
- 300731504_012_Instructions.pdf - Japanese - Instructions
- 3611011121_Neo_D_JA_web.pdf - Japanese - Sales Material
- 3611011114_Neo_D_KO_web.pdf - Korean - Sales Material
- 3611011135_Neo_D_PT-BR_web.pdf - Portuguese (European) - Sales Material
- 3611011107_Neo_D_RU_web.pdf - Russian - Sales Material
- 3611011111_Neo_D_ZH-CN_web.pdf - Simplified Chinese - Sales Material
- 3611011106_Neo_D_ES_web.pdf - Spanish (European) - Sales Material
- 3611011111_Neo_D_ZH-TW_web.pdf - Traditional Chinese - Sales Material
- 3611011136_Neo_D_ZH-TW_web.pdf - Traditional Chinese - Sales Material
- 3611011111_Neo_D_ZH-TW_web.pdf - Traditional Chinese - Sales Material
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| OIL LEVEL SWITCH SV NEO D | 9700LS | EUR 401.00 | |
| EXHAUST PRESSOSTAT UNIT | 971471210 | EUR 357.00 | |
| Exhaust Filter Gauge - 3/4" BSPP (G) Male | 95193 | EUR 261.00 | |
| EM GAS BALLAST 24V DC SV NEO D | 9700GBDC | EUR 360.00 | |
| PERMANENT GAS BALLAST SV NEO D | 9700GBP | EUR 171.00 | |
| MANUAL GAS BALLAST 16KF SV NEO D | 9700GBA | EUR 171.00 |
| Product Title | Part Number | Price | Add to cart |
|---|---|---|---|
| EXHAUST FILTER NEO D 25 | EK6702158 | EUR 73.60 | |
| MAINTENANCE KIT NEO D 25 | EK9702M | EUR 165.00 |
